Name: JHP103 M145A Electro Optical Tracking System Gimbal For USV Long Life
Brand: JOHO
Price: 1 USD

Brand Name : JOHO

Model Number : JHP103-M145B

Certification : ISO9001

Place of Origin : China

MOQ : 1

Supply Ability : 100units/Year

Delivery Time : 2 months after payment

Packaging Details : Standard Packing

Function : Searching, Observation, Tracking and Positioning

Type : Visible Light Single Sensor

Application : Navigation, Surveillance, Rescue

Customized : Support Customized

Platform : Two-axis

Detector : 1/2.8" CMOS

Pixel : 1920x1080

Focal : 35mm

Contact Now

JHP103-M145A Small Size Light Weight Affordable Gimbal for USV

Features and Function

Flexible sensors to satisfy various mission
Compact size, light weight and low power consumption
2-axis stabilization, high accuracy gyro and servo control system implement full coverage reconnaissance.

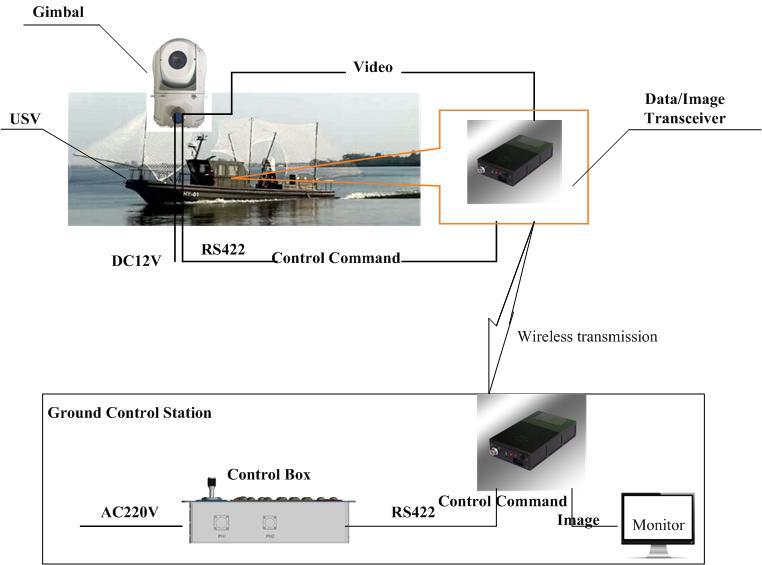

Network communication interface. Wireless communication enables ground station control gimbal and support video/image return.
IP66, shock and vibration resistance ensure long life even under harsh environment

Technical Specification

JHS103-M145A Small Size and Affordable Gimbal
Model A: Thermal Camera
Detector	Uncooled FPA	Pixel	640×512
Spectral band	8μm~14μm	Focal length	35mm
Model B: Day Light Camera
Detector	1/2.8" CMOS, 23x	Pixel	1920×1080
System Parameter
Azimuth	360°continuous	Elevation	-20°~ +75°
Stabilization	≤0.5mrad	Protection	IP67
Power supply	DC 24V/3A	Power consumption	≤30W
Dimension	Φ138m×224mm	Weight	≤3kg
